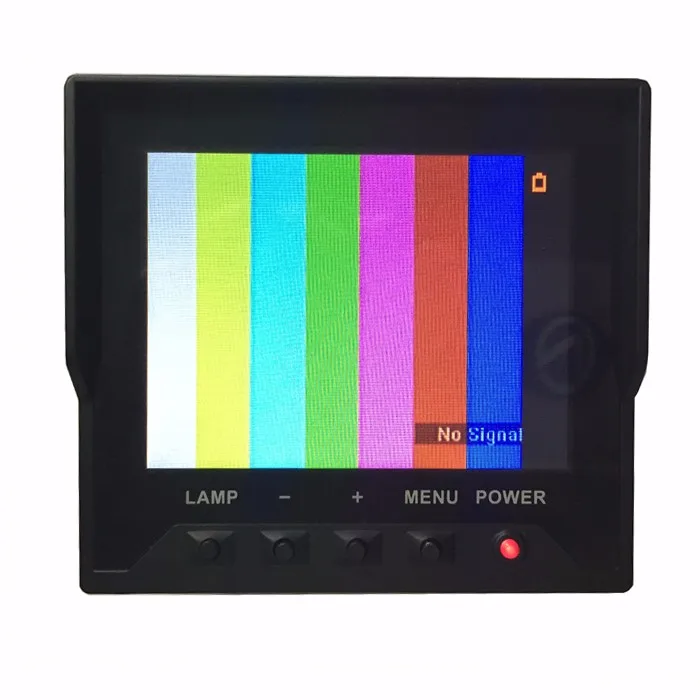

1. MENU :Menu:brightness,contrast,color,hue, language
2. +:to turn up, move the cursor right.
3. - :to turn down, move the cursor left.
4. LAMP: Flashlight lamp.

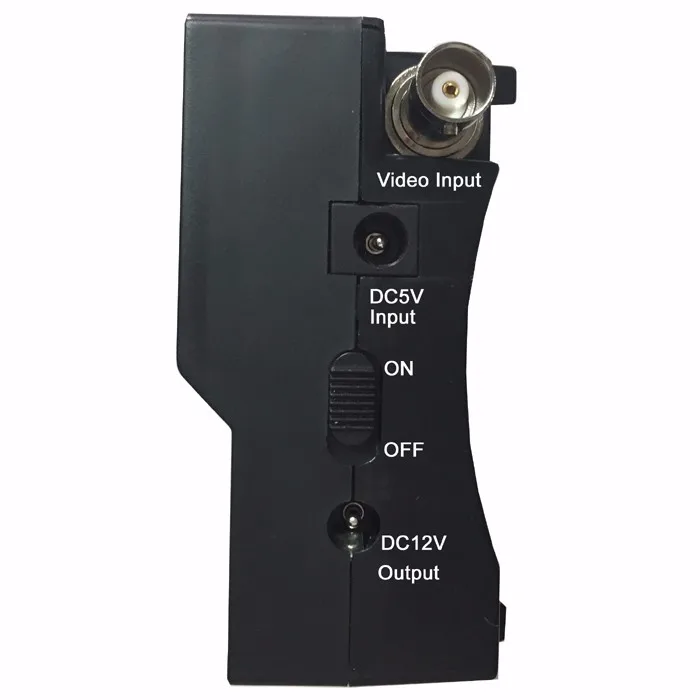

5.DC12V Output:supply other equipment.
6.ON/OFF:“ON”: turn on the unit; “OFF”: turn off the unit
7.DC5V Input:direct power supply (DC5V) input.
8.Video Input:support AHD /TVI/CVI Anlogy CCTV camera test.
A.Built-in battery pack power supply: Internal 2600mAh (3.7V) high-performance lithium-polymer battery. Turn on the power key,the battery can work about 3-4 hours outdoor.
An external power adapter: please use power adapter we supplied, and connectthe power DC5V at the rear panel to charge.
Built-in rechargeable battery pack:The battery with intelligent protection circuit to avoid the damage by over-recharge/over-dischargeor short-circuit.Please recharge the battery with the attached power adapterwhen the power light is red.(Suggestion: to charge the battery over 3-4 hours beforeuse the unit. The battery can achieve best function after recharge/discharge 2-3 times.)
B. Home power adapter(as right figure)
Please use power adapter we supplied, and connectthe power DC5V at the side panel to charge.
