Digital Display Satellite Finder Meter KPT-958H DVB-S2

FOB Reference Price:Get Latest Price
  • 1 - 9 Pieces
    US $125.00
  • >=10 Pieces
    US $93.00
Report Suspicious Activity
Overview
Quick Details
Place of Origin:
Fujian, China (Mainland)
Brand Name:
KANGPUT
Model Number:
KPT-958H
FTA(Free To Air):
Yes
Type:
Digital
High Definition:
Yes
LCD Display:
4.3"TFT LCD
Video Decoding:
DVB-S/S2,MPEG-2/4 display
Signal Test:
DVB-S/S2,MPEG-2/4,signal alarm & signal test
Frequency Range:
950MHz-2150MHz(DVB-S/S2)
Symbol Rate:
13/18V.max400mA(DVB-S/S2)
DiSEqC:
1.0, 1.1, 1.2, USALS
Satellite Management:
Edit, Add, Delete
Lithium Battery:
11.1V/2600mAh
Charger(out):
DC12V/1.5A
Aspect ratio:
4:3,16:9
SupplyAbility
SupplyAbility:
2000 Piece/Pieces per Month
Packaging & Delivery
Packaging Details
1 piece for one box;
10 boxes for one carton
Port
XIAMEN/SHENZHEN
Lead Time :
Shipped in 2 days after payment

Digital Display Satellite Finder Meter

KPT-958H DVB-S2



Unique Characteristic:

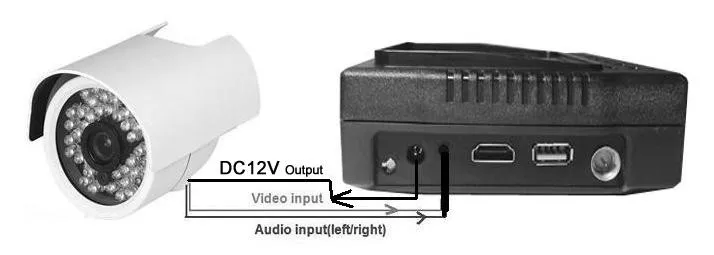

   Support DVB-S/S2 MPEG-4 standard and free channel analysis, it also can be easily find DVB-S and DVB-S2 signal source play, and support USB. Multi-functional design with search satellite, satellite TV display, satellite TV convert HD input, USB pictures, Music, Movie player, Record, camera monitoring functions etc.



   Support DVB-S standard. Fully display DVB-S, DVB-S2, MPEG-2, MPEG-4(H.2.64/AVC) digital satellite signals; High quality video, audio display with HDMI output.









Specification:



Specification

LCD Display

4.3”TFT LCD

Display size:97*55mm(16:9 display)

Dots pixels:480*272(391680Pixes)

Satellite signal

video decoding

DVB-S/S2,MPEG-2/4 display

signal test

DVB-S/S2,MPEG-2/4,signal alarm & signal test.

Menu language

English,French,Deutsch,Italiano;Spanish;Portuguese;Russian;Turkish;Polish; Arabic; Persian; Thai.

LNB/Tuner Input

connector

F type male puly : 75(F)

Frequency range

950MHz-2150MHz(DVB-S/S2)

Signal level

-80~-20dBm

Symbol rate

13/18V.max400mA(DVB-S/S2)

LNB switch control

22KHz(turn on/off/auto)

DiSEqC

1.0, 1.1, 1.2, USALS

Satellite Management

Edit, Add, Delete

Minimum electric level

About 35dBuV (noise)

Maximum electric level

About 90dBuV

Demodulator

Front end

QPSK(SCPC and MCPC compatible)

Symbol rate

2Mbps-45Mbps

Guard interval modes

1/32,1/16,1/8 Active symbol duration

Carriers/Constellation

All modes supported including non hierarchical

Demodulation

QPSK/8PSK/16PSK

System Resource

SDRAM

1G DDR2 SDRAM

FLASH

32MB NOR FLASH

Video Decoder

HDMI Output

480i /480P/576i / 576P / 720P50 /720P60 /1080i25 /1080i30 /1080P50 /1080P60 /1080P25 /1080P30 /1080P24 HD signal output.

Video format

PAL/NTSC/SECAM

Video decoding

MPEG-2 SD/HD(MP@ML and MP@HL),

MPEG-4 H 2.64/AVC SD/HD DivX 3.X~6X

Aspect ratio

4:3,16:9

Audio

Audio decoding

MPEG-1 and MPEG-2 layer I&II, Dolby Digital Audio,E-AC3,WMA and HE-AAC Digital Audio

Sample rate

32kHz,22.1kHz,44.1KHz,48kHz

USB

Connector

USB upgrade,

media player( PVR, Video, Music, Image)

Power Supply

Lithium Battery

11.1V/2600mAh

Charger

In  AC100-220V Charge 13.5V/1.5A

Out   DC12V/1.5A

Physical Specification

Size

180*122*48mm

Net Weight

528g (including battery pack)







Function:



 4.3inch portable multifunctional monitor& satellite finder is a product for the installation of satellite TV test tools. Set the satellite TV signal and image shows test, radio, television, monitoring function. With auto scan/blind scan/TP scan .Using TFT LCD display image, LED backlighting with low power consumption. And build-in large capacity with high-performance lithium battery for the integration of high-tech electronic products.

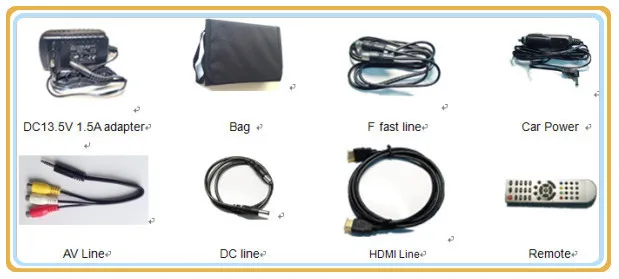

Accessory:

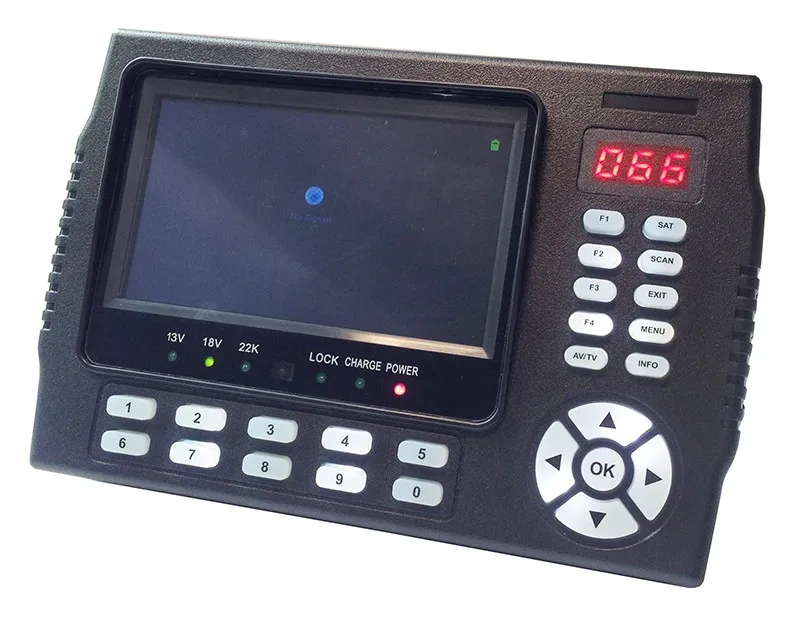

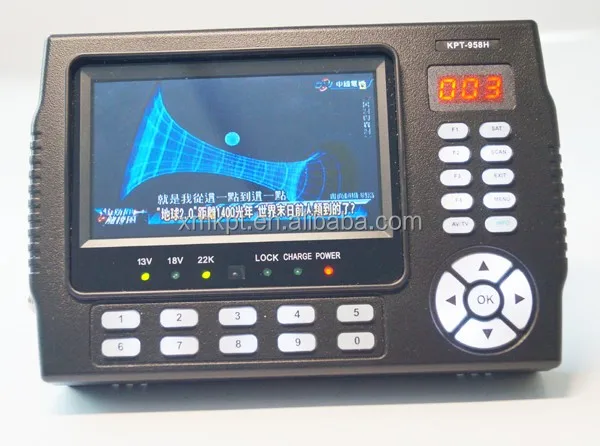

Product Show:

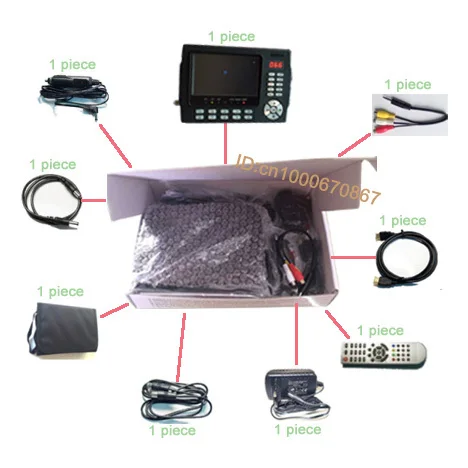

 Packing:
